Send InquiryTiltable Gravity Die Casting Machine
MOQ : 1 Unit
Tiltable Gravity Die Casting Machine Specification
- WorkingSpeed
- 90 RPM
- Frequency
- 50 Hertz (HZ)
- Product Type
- Tiltable Gravity Die Casting Machine
- Power Source
- Electricity
- Operating Type
- Automatic
- Power
- 440 Volt (v)
- Surface Treatment
- Painted
- Dimension (L*W*H)
- 320 x 225 x 90 mm Millimeter (mm)
- Color
- Any
- Warranty
- Yes
Tiltable Gravity Die Casting Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 30 Days
- Main Domestic Market
- All India
About Tiltable Gravity Die Casting Machine
|
Clamping force |
Tons |
150 |
|
Space between tie bars |
mm |
680x680 |
|
Tie bar diameter |
mm |
130 |
|
Die Opening stroke |
mm |
400 |
|
Injection force |
Mpa |
300 |
|
Plunger Launch distance |
mm |
170 |
|
Injection Position |
mm |
0-150 |
|
Plunger diameter |
mm |
50-60 |
|
Injection stroke |
mm |
480 |
|
Casting pressure (intensify) |
Mpa |
114/75/60 |
|
Casting fiange protrusion |
mm |
15 |
|
Casting fiange diameter |
mm |
165 |
|
Max casting area under 40Mpa |
cm2 |
1250 |
|
Injection weight (Al) |
KG |
5 |
|
Die height (Min-Max) |
mm |
200-800 |
|
ejector force |
KN |
170 |
|
ejector stroke |
mm |
90 |
|
Motor capacity |
KW |
22 |
|
Machine dimensions (L*W*H) |
M |
6.5*1.9*2.9 |
|
Oil tank capacity |
L |
900 |
|
Referential machine weight for uplifting |
T |
19 |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Die Casting Machine Category

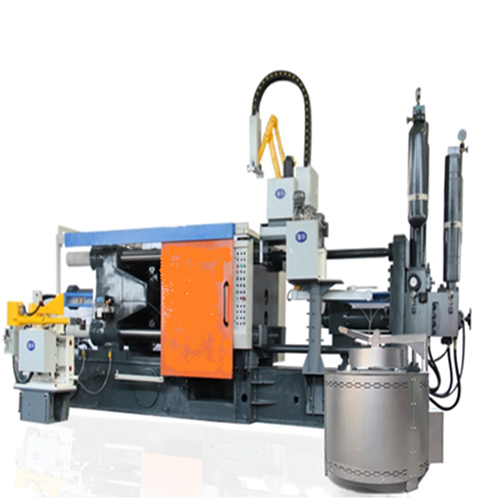

Horizontal Pressure Die Casting Machine
Minimum Order Quantity : 1 Unit
Surface Treatment : Painted
Drive : NONE
Motor Power : 7.5 Watt (W)
Weight (kg) : 5 Tonne
Usage & Applications : Industrial
