Send InquiryHorizontal Pressure Die Casting Machine
MOQ : 1 Unit
Horizontal Pressure Die Casting Machine Specification
- Noise Level
- low db
- Machine Type
- Hydraulic
- Cooling System
- shell and tube
- Lubricating System
- oil
- Control System
- PLC
- Model No
- UHD001
- Country Of Origin
- INDIA
- Voltage
- 440 Volt (v)
- Drive
- NONE
- Motor Power
- 7.5 Watt (W)
- Product Type
- Other
- Technology
- Other
- Power Source
- Electricity
- Operating Type
- Automatic
- Power
- 440 Volt (v)
- Pressure
- 210 kgf/cm2
- Surface Treatment
- Painted
- Dimension (L*W*H)
- 320 x 225 x 90 mm Millimeter (mm)
- Weight (kg)
- 5 Tonne
- Color
- Any
- Warranty
- 1 years
- Usage & Applications
- Industrial
Horizontal Pressure Die Casting Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 30 Days
- Main Domestic Market
- All India
About Horizontal Pressure Die Casting Machine
The Horizontal Pressure Die Casting Machine is a top-of-the-line industrial machine that is perfect for casting complex metal parts and products. Built with high-quality stainless steel material and coated with a multi-color paint for added durability, this machine is designed to withstand even the most demanding industrial applications. With its polished surface, it provides excellent quality casting results, making it the ideal choice for businesses that require precision casting. This machine is manufactured and supplied by a reputable exporter, manufacturer, and supplier in the industry.
|
Clamping force |
Tons |
150 |
|
Space between tie bars |
mm |
680x680 |
|
Tie bar diameter |
mm |
130 |
|
Die Opening stroke |
mm |
400 |
|
Injection force |
Mpa |
300 |
|
Plunger Launch distance |
mm |
170 |
|
Injection Position |
mm |
0-150 |
|
Plunger diameter |
mm |
50-60 |
|
Injection stroke |
mm |
480 |
|
Casting pressure (intensify) |
Mpa |
114/75/60 |
|
Casting fiange protrusion |
mm |
15 |
|
Casting fiange diameter |
mm |
165 |
|
Max casting area under 40Mpa |
cm2 |
1250 |
|
Injection weight (Al) |
KG |
5 |
|
Die height (Min-Max) |
mm |
200-800 |
|
ejector force |
KN |
170 |
|
ejector stroke |
mm |
90 |
|
Motor capacity |
KW |
22 |
|
Machine dimensions (L*W*H) |
M |
6.5*1.9*2.9 |
|
Oil tank capacity |
L |
900 |
|
Referential machine weight for uplifting |
T |
19 |
FAQs of Horizontal Pressure Die Casting Machine:
Q: What is the application of this machine?
A: This machine is designed for industrial applications, specifically for casting complex metal parts and products.Q: What is the material used to build this machine?
A: The Horizontal Pressure Die Casting Machine is built with high-quality stainless steel material.Q: How is the surface of this machine finished?
A: The surface of this machine is polished to provide excellent quality casting results.Q: What is the color of this machine?
A: This machine is coated with a multi-color paint for added durability.Q: Who manufactures and supplies this machine?
A: This machine is manufactured and supplied by a reputable exporter, manufacturer, and supplier in the industry.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Die Casting Machine Category

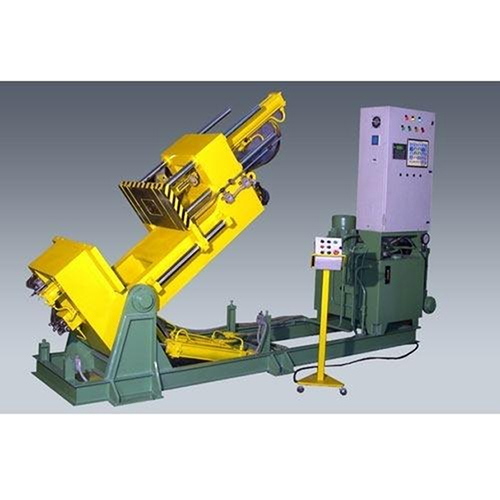

Tiltable Gravity Die Casting Machine
